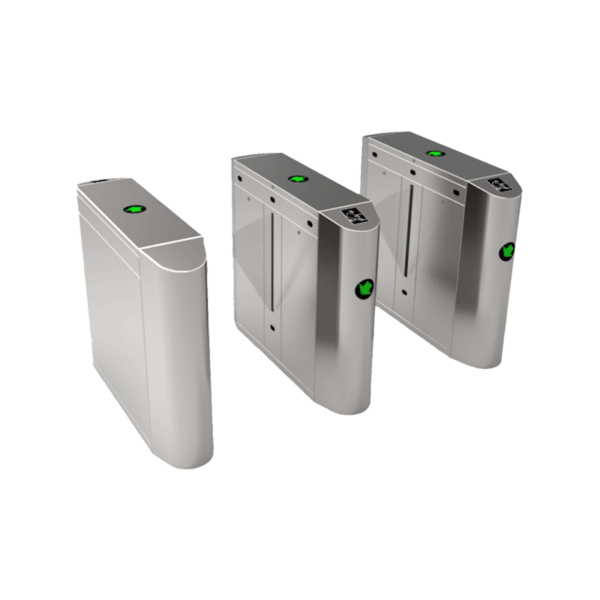

AFSS-01 (Flap Turnstile) 304 stainless steel

Power Supply: AC220V±10V ,50Hz / AC110V±10V ,60Hz
Power Consumption: 100W/24V
Temperature: -15 to 60 degrees
Humidity: <95%, without concretion
Passage Width: 600mm
Passing Speed: 30 persons/min (normal open), 20 persons/min (normal close)
Arm Open/Close Time: ls
Input Interface: +12V electrical signal or impulse signal with width more than 100ms, drive current >lOmA
Communication Interface: RS485 (Distance: <=1200m)
Material: Housing – 304 stainless steel; Arm – Plexiglass
Housing Dimension: 1200*300*1000mm
Arm Length: 280mm
Working Environment: Indoors or outdoors with shed
Problem-self-checking function.
Arm Turning: Bi-direction
When power off, arm open automatically and power on again, arm will be held automatically.
When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be set in the control panel.
Auto-reposition function: After card read, passenger doesn’t pass within regulated time, turnstile will cancel order automatically. And the regulated time can be set by managers.
Anti-rush function: if there is no open single, arm will be holding tightly.
Stable running with little noise.
