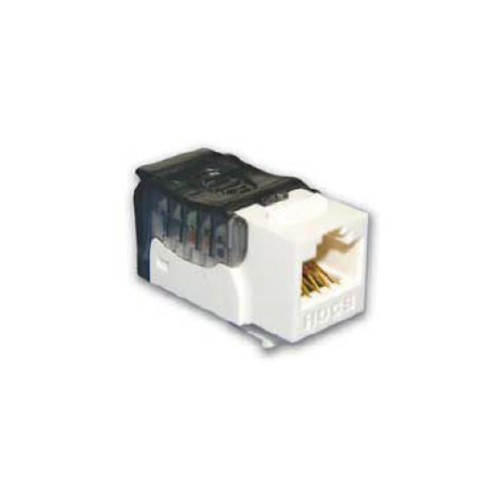

CAT6 UNSHIELDED KEYSTONE

Features

• Voltage rating: 125 VAC RMS
• Current rating: 1.5 AMP
• Contact resistance: 20 mΩ Max.
• Insulation resistance: 100MΩ Min. @ 500V DC
• Dielectric strength: 750V AC RMS 60Hz 1MIN
• Unbalance capacitance ≤330pF/100m
